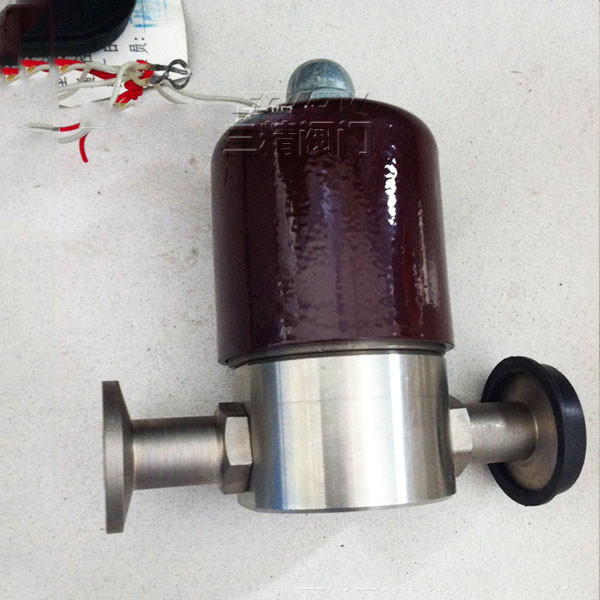

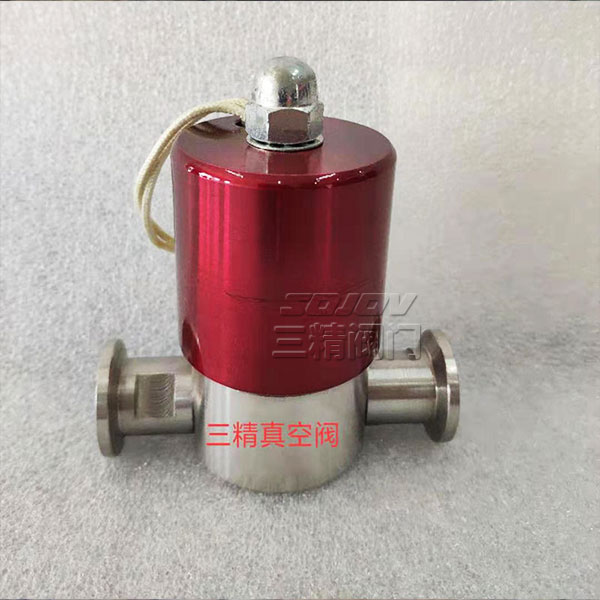

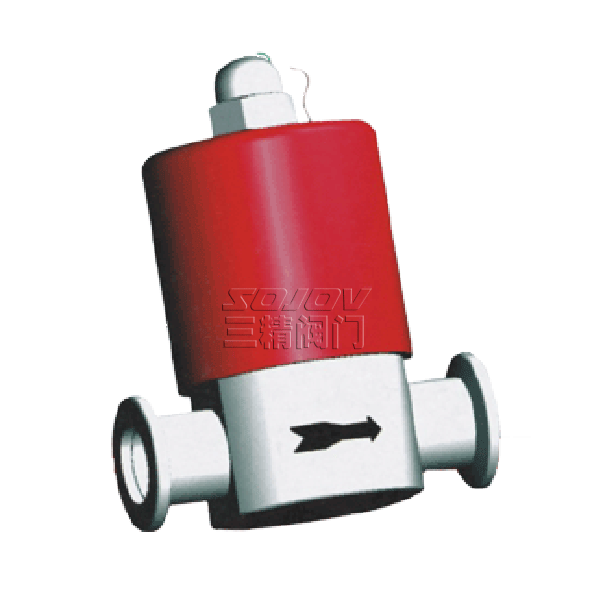

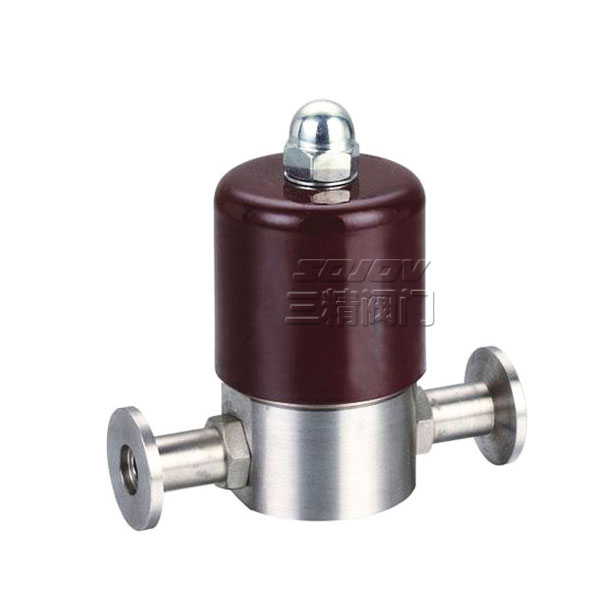

GDC-5電磁高真空擋板閥

GDC-5型電磁高真空擋板閥是連接在真空管路上，用來接通或截止真空系統中的氣流，或作充氣閥用。當通電時將P、A端管路接通、斷電時切斷P、A端管路，保持P端真空系統的真空度。適用介質為純凈空氣和非腐蝕性氣體。

產品樣本下載真空閥門系列實物圖產品小樣圖

下一個[GDC-J電磁高真空擋板閥]上一個：[GD高真空擋板閥]

產品詳情

GDC-5型電磁高真空擋板閥概述

Electro High Vacuum Flapper Valve

GDC-5 electro high vacuum flapper valve is mounted in vacuum pipeline to put through or cut off the airflow in vacuum system, or used as a charging vale. When power is connected, pipes at P and A will be put through, and when power is disconnected, pipes at P and A will be cut off, to keep the vacuum system at P vacuum. Applicable medium can be pure air and noncorrosive gases.

GDC-5型電磁高真空擋板閥主要技術性能

Main Technical Performance

公稱通徑：Nominal Diameter	5mm
適用范圍：Applicability	105～1.3×10-4Pa
閥門漏率：Valve Leak Rate	≤1.3×10-4Pa.L/S.
適用溫度：Applicable Temperature	-30～+50℃
線圍溫升：Coil Temperature Rise	≤65℃
電源電壓：Mains Voltage	220V/50Hz
安裝方向：Mounting Direction	垂直或水平
