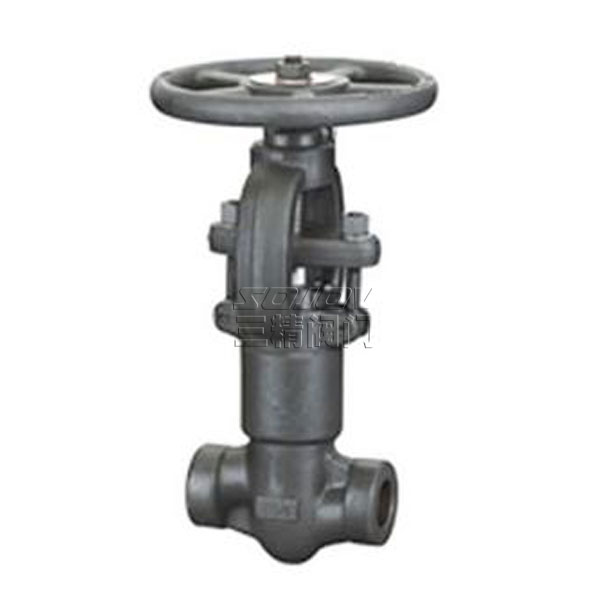

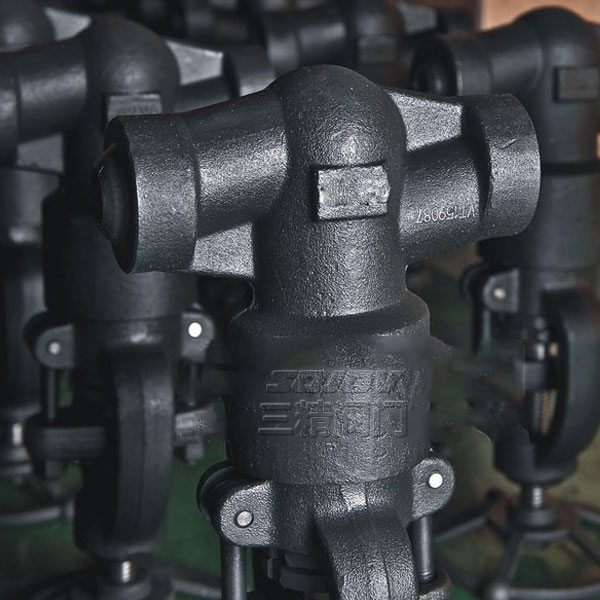

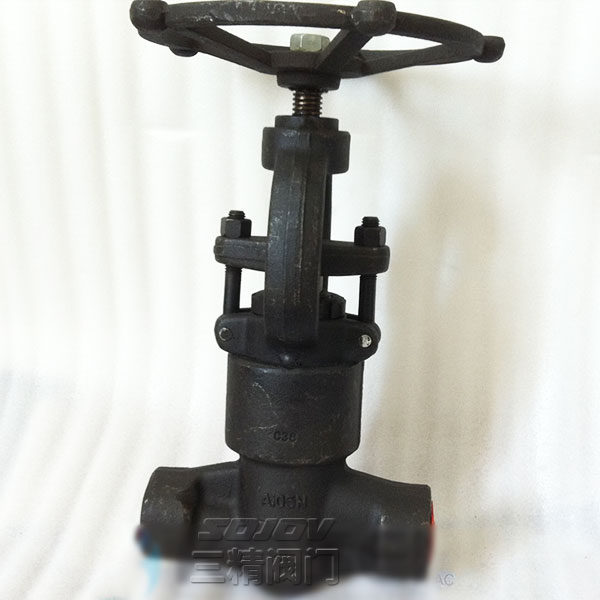

鍛鋼自密封截止閥
產品詳情
鍛鋼截止閥應用規范
1、設計制造：按ANSI B16.34;API602
2、連接端尺寸
(1)承插孔尺寸按ANSI B16.11,JIS B2306 (2)螺紋端尺寸按ANSI B1.20.1:BS21:JIS BO203:S107/1
3、閥門檢驗和試驗：按API 598
4、材料:按AIS/ASTM的規定
5、結構特征：P.S;OS&Y;L.B
6、主體材料：A105；F5；F11；F22；304；304L；316；316L；LF2等
Application criterion
1、Design and manufacture：to ANSI B16.34;API602
2、Size of coupling end:(1).Size of socket joint hole:to ANSI B16.11,JIS B236 (2).Size of threaded end :to ANSI B1.20.1:BS21:JISBO203:S107/1
3、Valve inspection and test：to API 598
4、Material:to AIS/ASTM
5、Structurecharacteristics：P.S;OS&Y;L.B
6、Materiare fo main body： A105；F5；F11；F22；304；304L；316；316L；
|
規格 DN
Specification DN |
S
|
L
|
T(IN)
|
W
|
H(開)Open
|
重量kg weight
|
|||||
|
|
公制 metric
|
ANSI
|
JIS
|
900 1500 Pound grade
|
2500 Pound grade
|
ANSI
|
ISO,BS
|
JIS
|
|||
|
NPI牙形60°
|
RC牙形55°
|
PT牙形55°
|
|||||||||
|
1/2
|
15
|
21.8
|
22.2
|
140
|
186
|
1/2
|
125
|
321
|
12.3
|
||
|
3/4
|
20
|
27.1
|
27.7
|
140
|
186
|
3/4
|
125
|
321
|
10.8
|
||
|
1
|
25
|
33.8
|
34.5
|
140
|
186
|
1
|
160
|
321
|
10.5
|
||
|
11/4
|
32
|
42.6
|
43.2
|
178
|
232
|
11/4
|
160
|
380
|
21.0
|
||
|
11/2
|
40
|
48.7
|
49.1
|
178
|
232
|
11/2
|
180
|
414
|
19.6
|
||
|
2
|
50
|
61.1
|
61.1
|
216
|
279
|
2
|
200
|
502
|
|
||
鍛鋼自密封截止閥的產品訂貨號
Products order neumber
|
主體材料
Materials of main body |
密封付 Airproof Set
|
|||||||||
|
H
|
Y
|
C
|
E
|
G
|
J
|
K
|
X
|
A
|
M
|
|
|
13cr/13cr
|
13cr/stl
|
STL/STL
|
304/304
|
316/316
|
304L/304/L
|
316L/316L
|
(NACE)STL/STL
|
K.C/H.C
|
M./M.
|
|
|
A015
|
PJ15SHC
|
PJ15SYC
|
PJ15SCC
|
|
|
|
|
KPJ15SXFA
|
|
|
|
F5
|
|
|
PJ15SCE
|
|
|
|
|
|
|
|
|
F11
|
|
|
PJ15SCB
|
|
|
|
|
|
|
|
|
F22
|
|
|
PJ15SCV
|
|
|
|
|
|
|
|
|
LF2
|
|
PJ15SYF
|
PJ15SCF
|
|
|
|
|
KPJ15SXCA
|
|
|
|
304
|
|
|
PJ15SCP
|
PJ15SEP
|
|
|
|
|
PJ15SAP
|
PJ15SMP
|
|
304L
|
|
|
PJ15SCS
|
|
|
PJ15SRS
|
|
|
PJ15SAS
|
PJ15SMS
|
|
316
|
|
|
PJ15SCR
|
|
PJ15SER
|
|
|
|
PJ15SAR
|
PJ15SMR
|
|
316L
|
|
|
PJ15SCL
|
|
|
|
PJ15SKL
|
|
PJ15SAL
|
PJ15SML
|
三精閥門公司訂貨須知：
一、① 鍛鋼截止閥產品名稱與型號② 鍛鋼截止閥口徑③ 鍛鋼截止閥是否帶附件以便我們的為您正確選型④ 鍛鋼截止閥 的使用壓力⑤ 鍛鋼截止閥的使用介質的溫度。
二、若已經由設計單位選定三精公司的 鍛鋼截止閥型號，請按 鍛鋼截止閥型號直接向我司銷售部訂購。當使用的場合非常重要或環境比較復雜時,請您盡量提供設計圖紙和詳細參數，由我們的三精閥門公司專家為您審核把關。感謝您訪問我們的網站【http://www.cnsjv.com三精閥門公司】如有任何疑問.您可以致電給我們,我們一定會盡心盡力為您提供優質的服務
| 相關鍛鋼閥門系列 | ||||
| 鍛鋼自密封截止閥 | J11Y/J61Y鍛鋼截止閥 | Z41Y法蘭鍛鋼閘閥 | 鍛鋼閘閥.鍛不銹鋼閘閥 | J41Y法蘭鍛鋼截止閥 |
